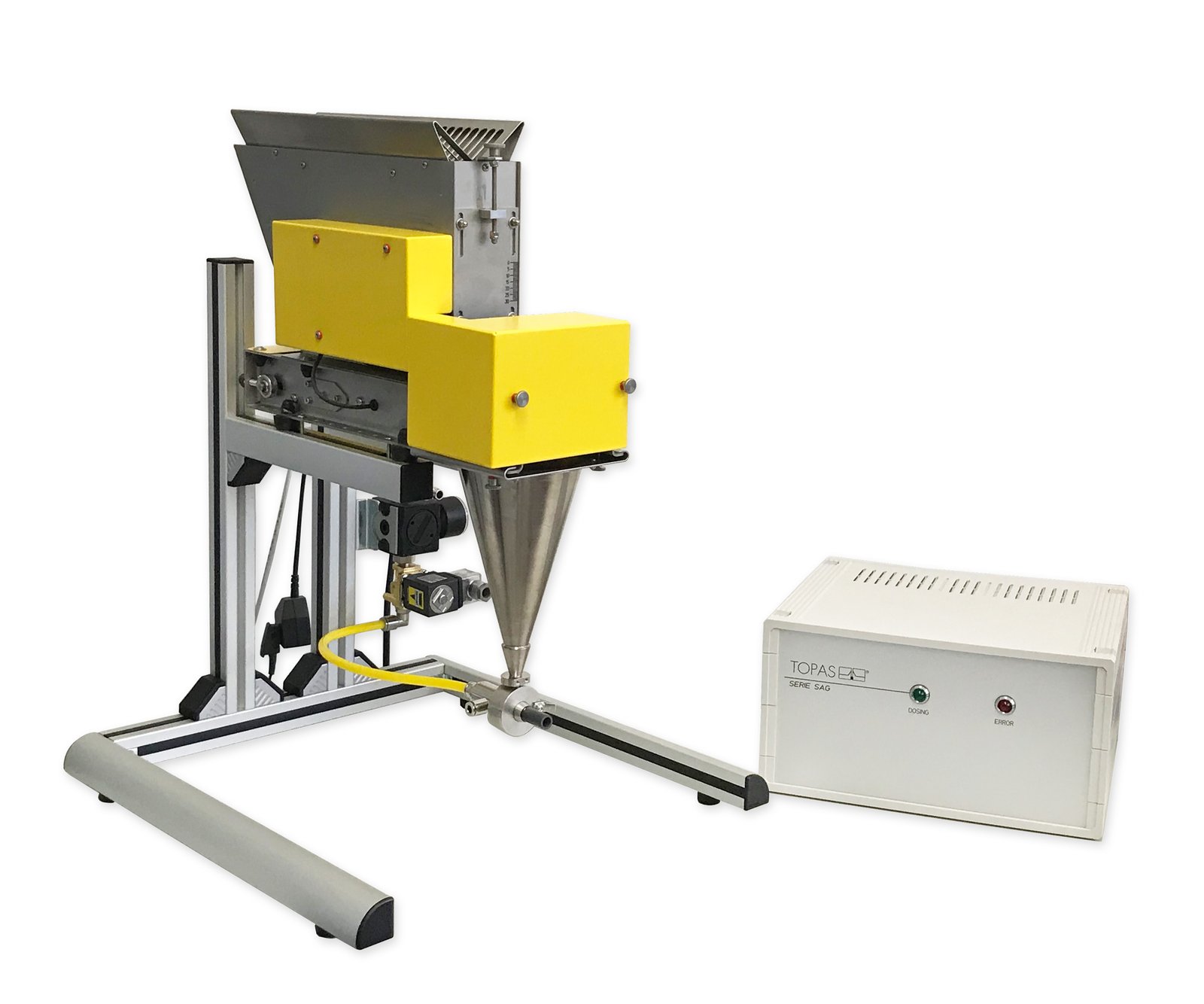

SAG 420 Solid Aerosol / Dust Disperser
High-mass-flow belt-dosing dust disperser for reproducible powder aerosol generation in engine-intake filter testing, dust loading and large-scale filtration studies.
Model Overview
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| SAG 420 | High-mass-flow belt-dosing dust disperser | Precision belt feeder with compressed-air dispersion for controlled high-rate powder aerosol generation | Engine-intake filter testing, high-capacity dust loading and large filter-system development |
Key Features
Very wide mass-flow range
Provides approximately 6–6,000 g/h for both development studies and heavy dust-loading tests.
Precision belt dosing
Separates powder feed from dispersion airflow for controlled and reproducible mass delivery.
High carrier flow
Supports 3,000–18,000 L/h aerosol flow for large ducts and intake-filter test systems.
Standard test-dust compatibility
Designed for compatible free-flowing, non-abrasive and non-cohesive powders below 200 µm.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| SOLID AEROSOL GENERATION | ||
| Dosing principle | — | Precision belt dosing |
| Dispersion pressure | bar | 1–6 |
| Relative belt velocity | % | 1–100, continuously adjustable |
| Relative stirring frequency | % | 0–100, continuously adjustable |
| Aerosol volumetric flow rate | L/h | 3,000–18,000 |
| Mass flow at bulk density 1 | g/h | 6–6,000 |
| Recommended powder size | µm | < 200 |
| OPERATING CONDITIONS | ||
| Powder filling volume | mL | Max. 2,000 |
| Compressed-air supply | bar | ≤ 8 |
| Power supply | — | 110–240 V AC, 50–60 Hz |
| Hose connector | mm | Ø 16 (ISO nozzle); Ø 25 (heavy-duty nozzle) |
| Dimensions W × H × D | mm | 150 × 450 × 400 (generator with hopper and nozzle) |
| Weight | kg | 4.7 generator with hopper and nozzle; 3.8 control unit |
| Material limitations | — | Non-abrasive, non-cohesive and non-toxic powders; application safety review required |
Specifications follow the current manufacturer product data (Topas SAG 420, verified 30 August 2026). Values shown are manufacturer specifications for model selection. Confirm the final configuration, accessories, utilities and calibration scope before ordering.
Applications
ISO 5011 dust loading
Supplies high-rate standard test dust for intake-filter efficiency and capacity measurements.
High-capacity dust challenge
Supports loading and lifetime tests on complete filtration assemblies.
Controlled powder mass flow
Provides repeatable solid aerosol for separators, cyclones and dust-removal components.
High-throughput powder dispersion
Enables parameter studies across belt speed, air flow and powder feed rate.
